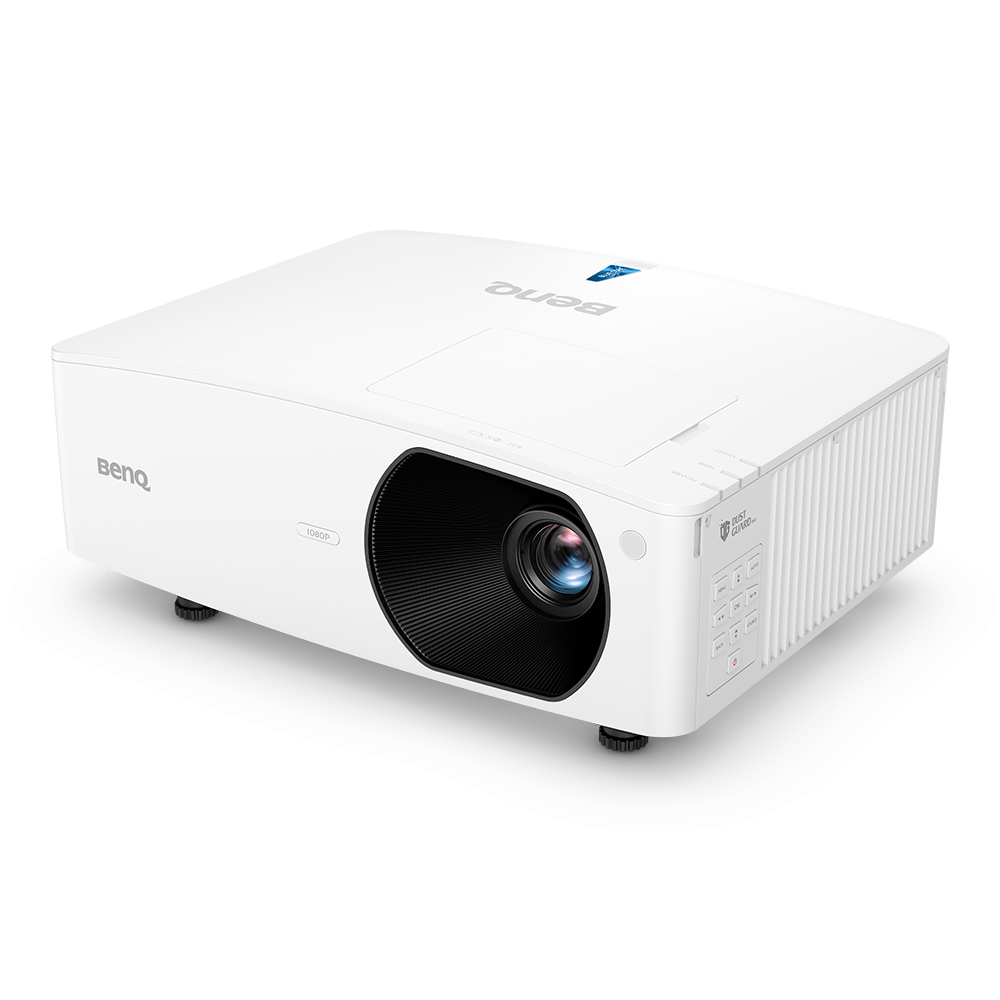

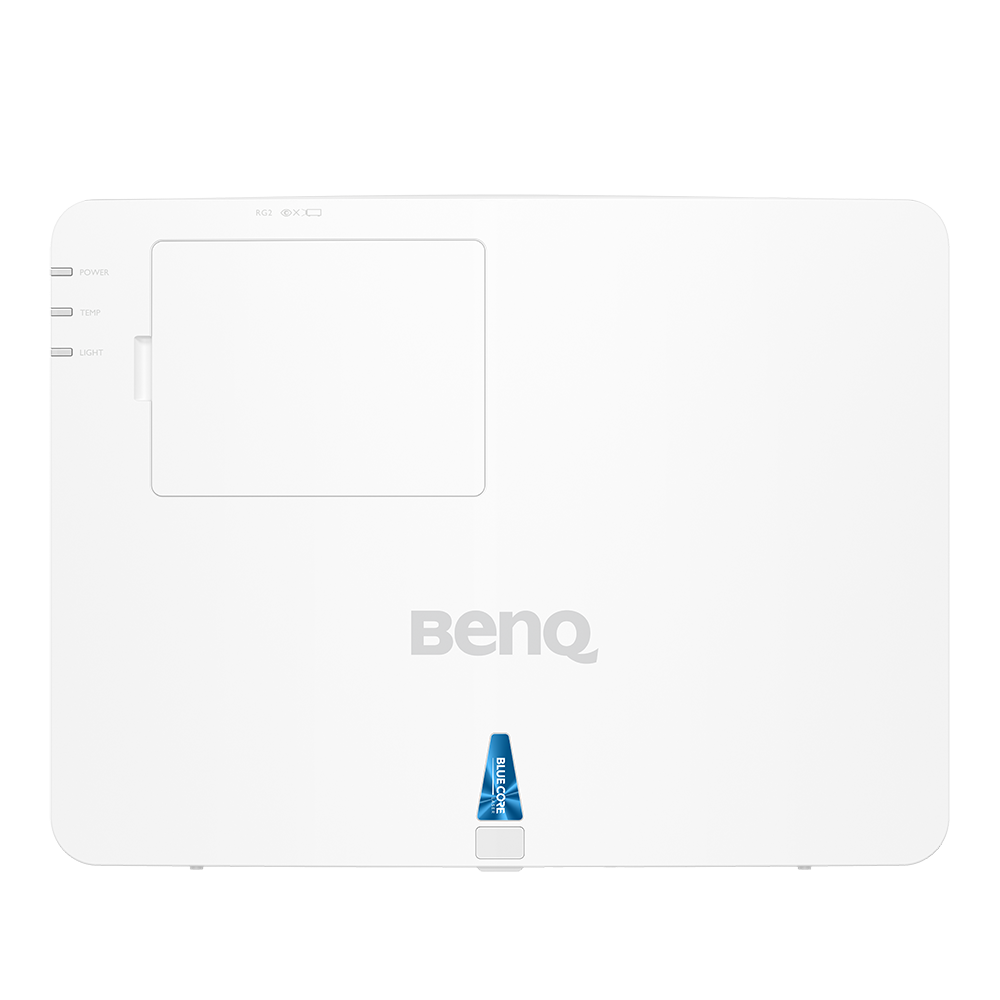

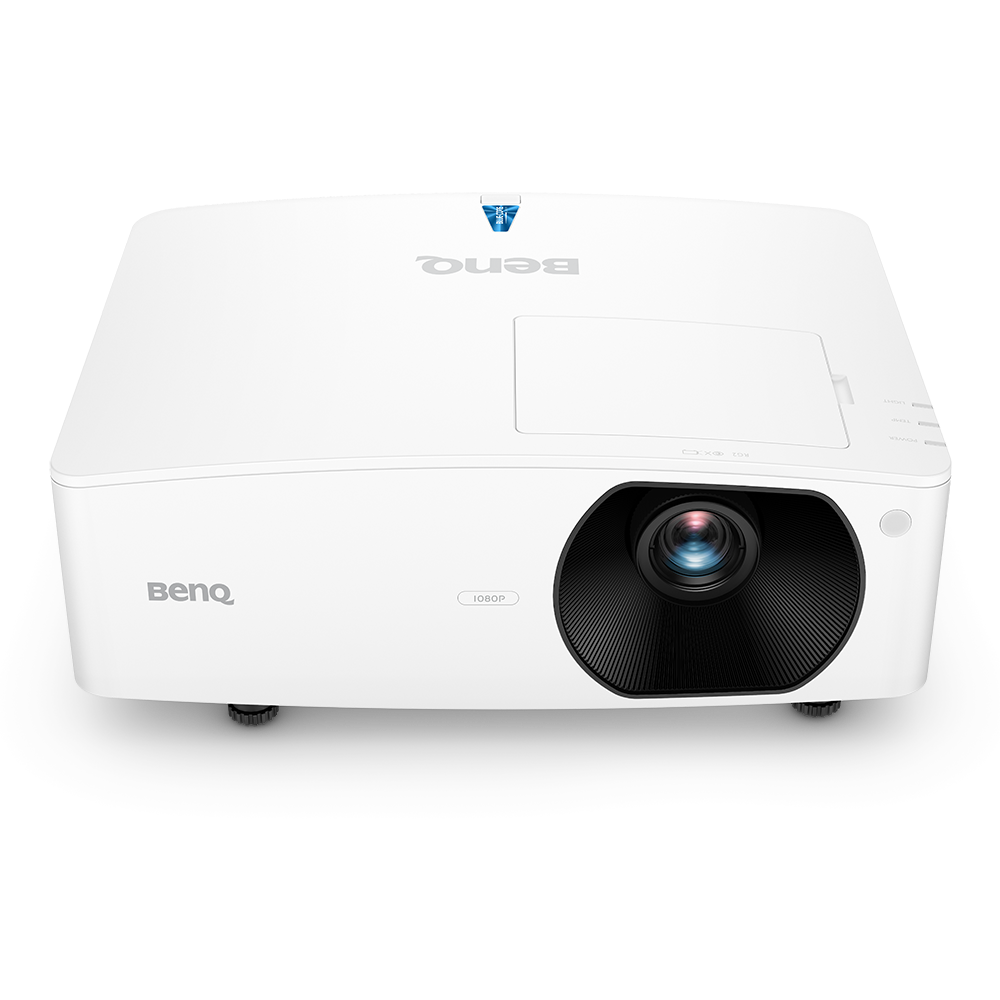

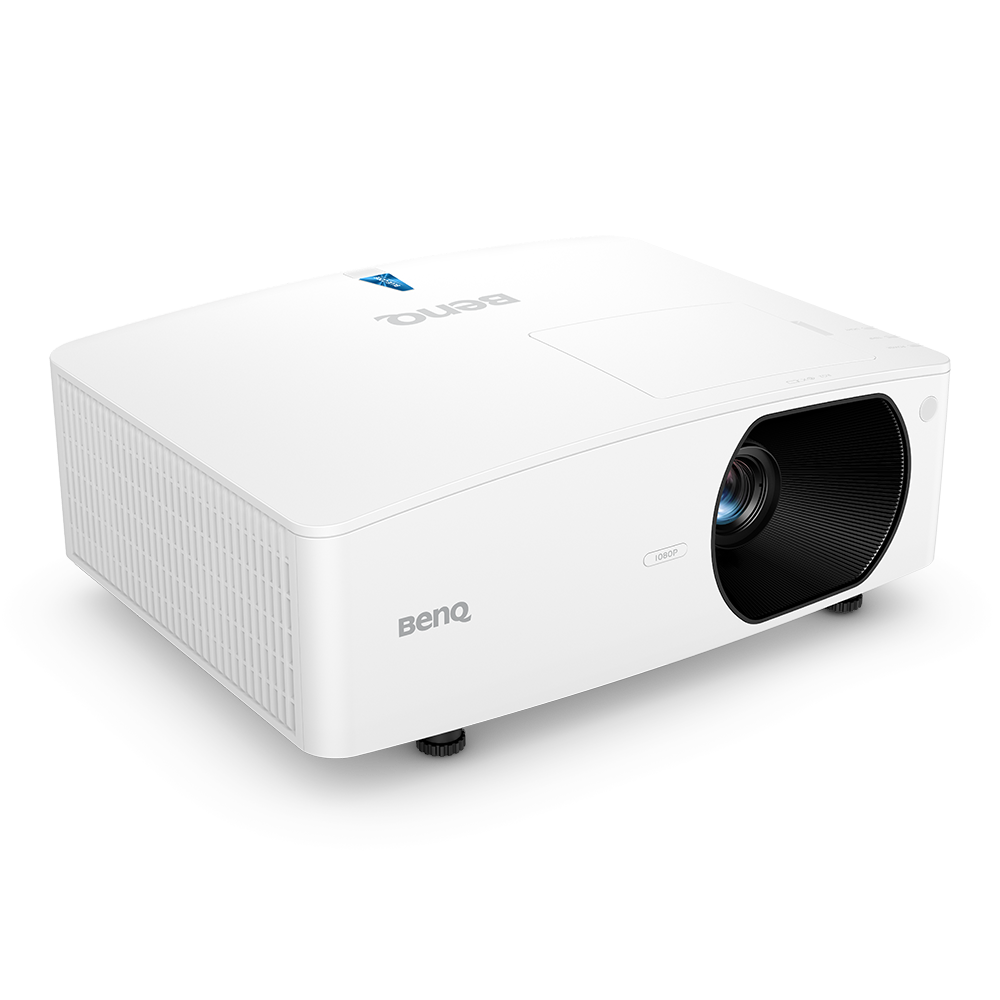

LH710 4000lms 1080P Conference


Let Your Innovation Shine through Accurate True Color
  • 3,000,000:1 contrast ratio
  • 92% Rec.709 color coverage
  • IP5X dustproof mechanism reducing maintenance costs
Special Promotion
    LH710 4000lms 1080P Conference Let Your Innovation Shine through Accurate True Color
    • 3,000,000:1 contrast ratio
    • 92% Rec.709 color coverage
    • IP5X dustproof mechanism reducing maintenance costs
    Special Promotion
      close-button
      Tüm Özellikler
      Ekran
      Parlaklık (ANSI lümen)
      4000
      Çözünürlük
      1080P (1920x1080)
      Doğal En/Boy Oranı
      16:9
      Kontrast Oranı (FOFO)
      3000000:1
      Ekran Rengi
      30 Bits (1,07 billion colors)
      Işık Kaynağı
      Lazer
      Işık Kaynağı Ömrü
      20000 saat
      Optik
      Atım Oranı
      1.13 ~ 1.46
      Yakınlaştırma Oranı
      1,3x
      Lens
      F/# = 1.94 ~ 2.12,f = 11.9 ~ 15.5 mm
      Yansıtma Ofseti (Tam Yükseklik)
      105%
      Keystone Ayarı
      2D, Dikey ± 30 derece; Yatay ± 30 derece
      Resim
      Rec.709 Kapsamı
      92%
      Resim Modları
      3D, Parlak, İnfografik, Sunum, sRGB, Kullanıcı 1, Kullanıcı 2, Video
      Uyumluluk
      Giriş Gecikmesi
      2 frame (33.34ms) 60Hz
      Çözünürlük Desteği
      VGA(640 x 480) ila WUXGA_RB(1920 x 1200) *RB=Azaltılmış boşluk
      Yatay Frekans
      15K~102KHz
      G/Ç Arayüzü
      PC girişi (D-sub 15pin)
      (x1), PC in-1
      Monitör çıkışı (D-sub 15pin)
      (x1)
      Kompozit Video girişi (RCA)
      (x1)
      Bileşen Video girişi (3RCA)
      (x1)
      HDMI girişi
      (x2), HDMI-1 (1.4a/HDCP1.4), HDMI-2 (1.4a/HDCP1.4)
      LAN (RJ45)
      (x1)
      USB Type A
      (x1), USB Type A-1 (2.0/Güç Kaynağı1.5A/Service)
      RS232 girişi (DB-9pin)
      (x1)
      DC 12V Tetikleyici (3,5 mm Jak)
      (x1)
      Ses
      Hoparlör
      (x2), 10 W
      Ses girişi (3,5 mm Mini Jak)
      (x1), 1
      Ses çıkışı (3,5 mm Mini Jak)
      (x1), 1
      S/PDIF
      Yok
      Çevre
      Çalışma Sıcaklığı
      0~40℃
      Güç Kaynağı
      AC 100 ila 240 V, 50/60 Hz
      Tipik Güç Tüketimi (110V)
      Max 340W/ Normal 290W/ Eco 190W
      Bekleme Durumunda Güç Tüketimi
      <0,5W
      Ağ Bekleme Durumunda Güç Tüketimi
      <2W
      Akustik Gürültü (Tip./Eko.)(dB)
      34/29 dB
      Aksesuarlar
      Pil ile Uzaktan Kumanda
      RCE016
      Güç Kablosu (bölgeye göre)
      x1 (1.8M)
      HDMI Kablo
      Yes, 1.8m
      3D Gözlük
      (Optional), DGD5
      Hızlı Başlangıç Kılavuzu
      1 (21L)
      Garanti Belgesi (bölgeye göre)
      Evet
      Toz Önleyici Filtre
      (Optional), Yes
      Evrensel Tavana Montaj
      Yes, CMG3
      Boyut ve Ağırlık
      Boyutlar (GxYxD) (mm)
      416 x166 x312
      Net Ağırlık (kg)
      6.3
      Net Ağırlık (lb)
      13
      Projeksiyon Sistemi
      Projeksiyon Sistemi
      DLP
      Optical
      Throw Ratio
      1.13 ~ 1.46
      Zoom Ratio
      1.3x
      Lens Control
      Manual Focus
      Keystone Correction
      2D keystone, V: ±30 degree; H: ±30 degree
      Projection Size
      03" ~ 300"
      Projection Offset
      105%
      Display
      Projection System
      DLP Single 0.48" WUXGA
      DMD type
      DC3 DMD chip
      Brightness
      4,000 Lumens
      Contrast Ratio*
      3,000,000:1
      Display Color
      1.07 Billion Colors
      Aspect Ratio
      Native 16:9 (5 aspect ratio selectable)
      Light Source
      Laser
      Light Source Life*
      20,000 hours
      Native Resolution
      1920 x 1080 pixels, 16:9
      Audio
      Built-in Speaker
      10Wx2
      Feature
      Security
      Security Bar, Kensington anti-theft lock slot
      Feature
      Digital Shrink and Shift, 360∘Projection, LAN Control(AMX/ PJ Link/Crestron), MDA,DMS Local Compatibility, FW upgrade via LAN

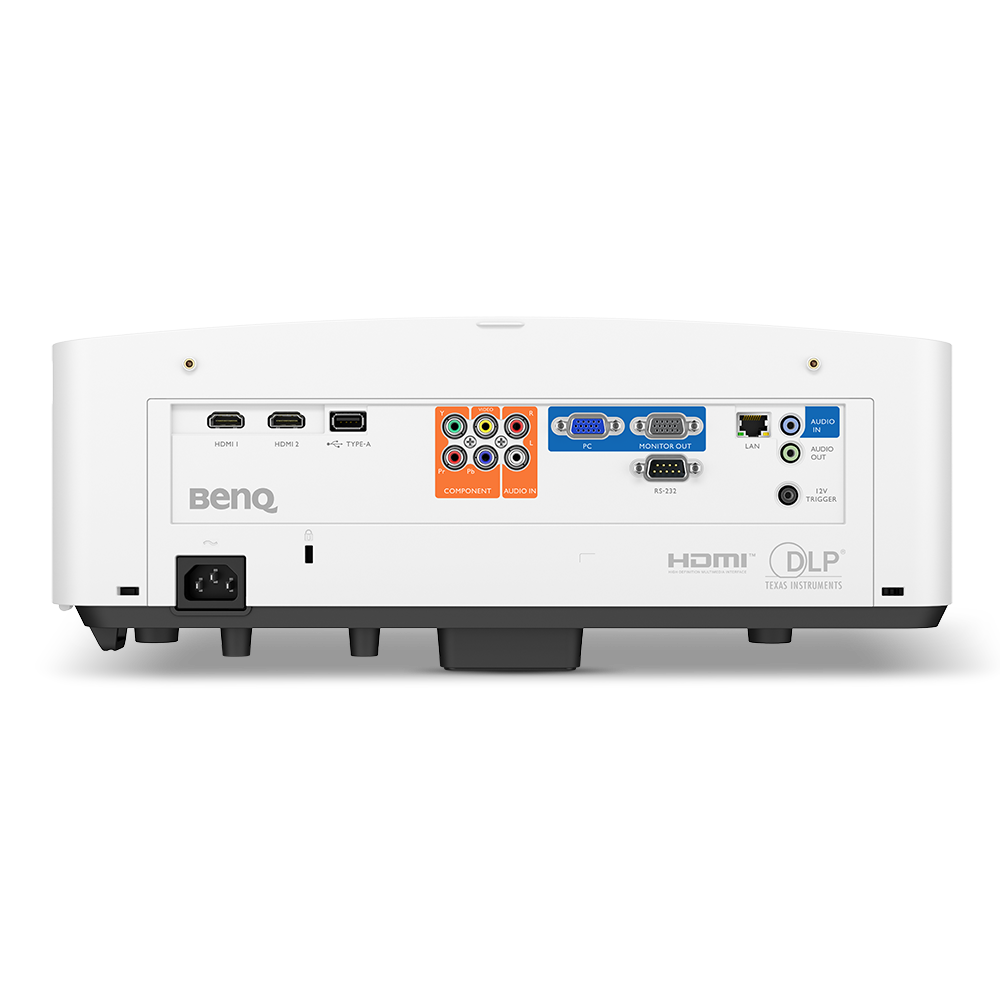

      Connectivity
      I/O PORT
      HDMI (1.4a) x 2
      PC (D-sub 15pin) x 1
      Monitor out (D-sub 15pin,Female) x 1
      Audio in(mini jack) x 1
      Audio out (mini jack) x 1
      RS232 In (D-sub 9pin, male) x 1
      LAN Port(RJ45 for Network ) x 1
      USB TypeA-2 (5V,1.5A, Service) x 1
      Component Video in x 1
      Composite Video in (RCA) x 1
      RCA Audio in- L/R x 1
      IR Receiver(Front+Top) x 2
      12V Trigger x 1
      Kensington anti-theft lock slot x 1
      Compatibility
      Resolution Support
      VGA(640 x 480) to WUXGA_RB(1920 x 1200)
      Horizontal Frequency
      15~102KHz
      Vertical Scan Rate
      23 ~ 120 Hz
      HDTV Compatibility
      480i, 480p, 576i, 567p, 720p, 1080i, 1080p
      Video Compatibility
      NTSC, PAL, SECAM
      Power
      Power Consumption (Max/Normal/Eco)
      Max 392W/ Normal 392W/ Eco 320W
      Standby Power Consumption
      Normal < 0.5W. Network < 2W.
      Dimension and Weight
      Product Dimensions (WxHxD)
      416 x166 x312 mm
      Product Weight
      6.3 Kg (13.0 lbs)
      Operation Condition
      Operating Temperature
      0 ~ 40oC
      Noise Level (Normal/Eco)
      34/29 dB
      Accessories
      Accessories (Standard)
      Power Cord (by region)
      Remote Control w/ Battery (RCE016)
      HDMI cable
      Warranty Card (by region)
      QSG
      Accessories (Optional)
      3D Glasses (5J.J9H25.002)
      Ceiling mount (CMG3)
      WDC10
      WDC20
      Qcast Mirror
      Qcast
      OSD
      On Screen Display Language
      Arabic/Bulgarian/ Croatian/ Czech/ Danish/ Dutch/ English/ Finnish/ French/ German/ Greek/ Hindi/ Hungarian/ Italian/ Indonesian/Japanese/ Korean/ Norwegian/ Polish/ Portuguese/ Romanian/ Russian/ Simplified Chinese/ Spanish/ Swedish/ Turkish/Thai/TraditionalChinese/Vietnamese /Farsi (30 Languages)
      InstaShow Host
      Power Supply
      100 ~ 240V AC
