MW535A Refurbished 3600lms WXGA Meeting Room Projector
Crystal Clear Presentation to Win the Day
- 3600 ANSI Lumen High brightness and 15,000:1 High Contrast
- Exclusive Infographic Mode Showcases Text and Graphic in Detail
- SmartEco Mode Saves Lamp Power Up To 70%
MW535A Refurbished 3600lms WXGA Meeting Room Projector
Crystal Clear Presentation to Win the Day
- 3600 ANSI Lumen High brightness and 15,000:1 High Contrast
- Exclusive Infographic Mode Showcases Text and Graphic in Detail
- SmartEco Mode Saves Lamp Power Up To 70%
The requested qty is not available
The requested qty exceeds the maximum qty allowed in shopping cart
Product that you are trying to add is not available.
All Specifications
Display
Brightness (ANSI lumens)
3600
Resolution
WXGA (1280x800)
Native Aspect Ratio
16:10
Contrast Ratio (FOFO)
15,000:1
Display Color
30-bit (1.07 billion colors)
Light Source
Lamp
Light Source Life
a. Normal 5000 hrs, c. SmartEco 15000 hrs, b. ECO 10000 hrs
Throw Ratio
1.55~1.86
Zoom Ratio
1.2x
Lens
F=2.46-2.66
f=21.8-25.6
Projection Offset (Full-Height)
104%
Keystone Adjustment
1D, Vertical ± 40 degrees
Picture Modes
3D, Bright, Cinema, Presentation, sRGB, User 1, User 2
Input Lag
34 ms (1080p@60Hz)
Resolution Support
VGA(640 x 480) to WUXGA_RB(1920 x 1200) *RB=Reduced blanking
Horizontal Frequency
15K~102KHz
Vertical Scan Rate
23~120Hz

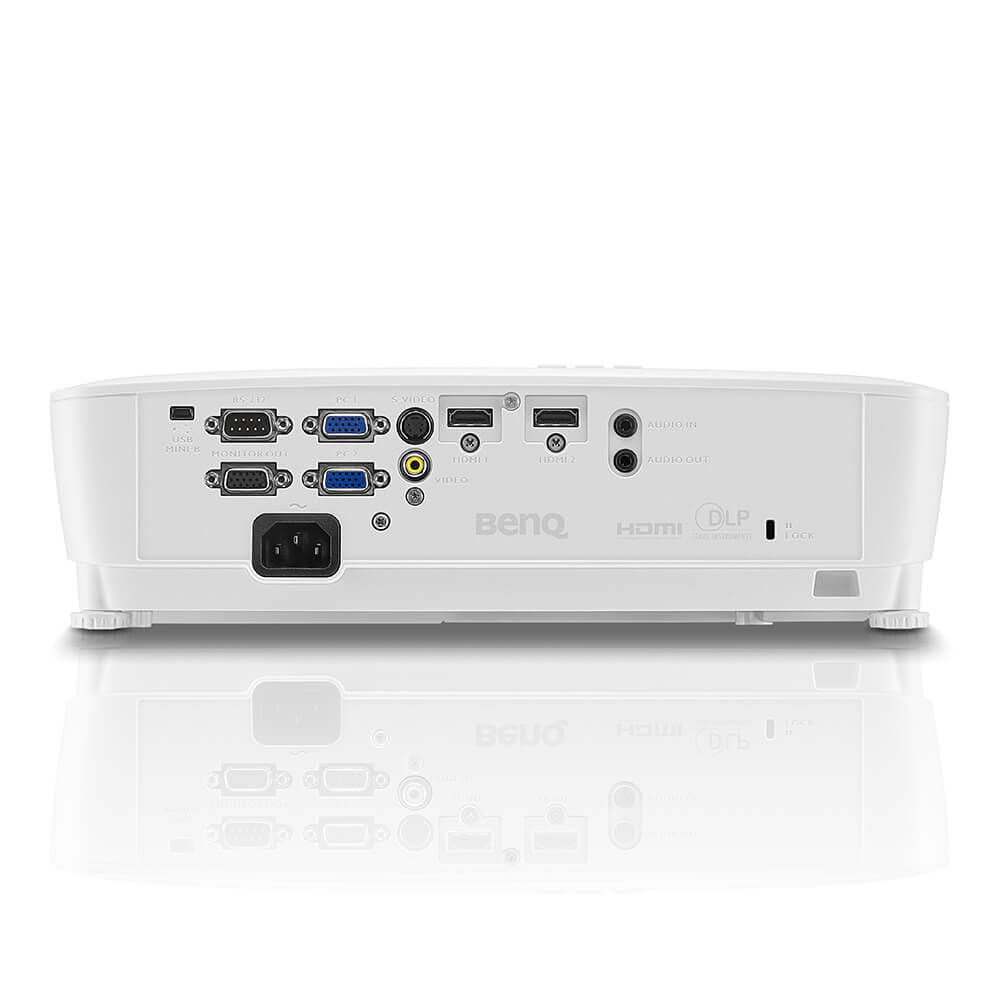

PC in (D-sub 15pin)
(x2)
Monitor out (D-sub 15pin)
(x1)
Composite Video in (RCA)
(x1)
S-Video in (Mini DIN 4pin)
(x1)
HDMI in
(x2), HDMI-1 (1.4a/HDCP1.2), HDMI-2 (1.4a/HDCP1.2)
USB Type Mini B
(x1)
RS232 in (DB-9pin)
(x1)
Speaker
(x1), 2W
Audio in (3.5mm Mini Jack)
(x1)
Audio out (3.5mm Mini Jack)
(x1)
Operating Temperature
0~40℃
Power Supply
AC 100 to 240 V, 50/60 Hz
Typical Power Consumption (110V)
252W
Acoustic Noise (Typ./Eco.)(dB)
32/29
Carry Bag
Yes (5J.J4R09.001, Optional)
Remote Control w/ Battery
RCX013
Power Cord (by region)
x1 (1.8M)
VGA(D-sub 15pin) Cable
1 (1.5m)
3D Glasses
DGD5
Quick Start Guide
(x1) 18L
Warranty Card (by region)
Yes
Universal Ceiling Mount
(Optional), CMG3
Dimensions (WxHxD) (mm)
332.4 x 99x 241.3
Net Weight (kg)
2.41
Projection System
DLP
