كل المواصفات
| Panel | |||
|---|---|---|---|
|
Screen size
65''
|
Screen size
75''
|
Screen size
86''
|
|
|
Panel type
IPS
|
Panel type
IPS
|
Panel type
IPS
|
|
|
Active area
1428.5 × 803.5 mm
|
Active area
1649.7 × 927.9 mm
|
Active area
1895.0 × 1066.0 mm
|
|
|
Aspect ratio
16:9
|
Aspect ratio
16:9
|
Aspect ratio
16:9
|
|
|
Resolution
UHD 3840 × 2160 pixels
|
Resolution
UHD 3840 × 2160 pixels
|
Resolution
UHD 3840 × 2160 pixels
|
|
|
Response time
8 ms
|
Response time
8 ms
|
Response time
8 ms
|
|
|
Color depth
10-bit
|
Color depth
10-bit
|
Color depth
10-bit
|
|
|
Orientation
Landscape
|
Orientation
Landscape
|
Orientation
Landscape
|
|
|
Operation hours
18 hours / 7 days
|
Operation hours
18 hours / 7 days
|
Operation hours
18 hours / 7 days
|
|
|
Panel brightness (typical)
400 nits
|
Panel brightness (typical)
450 nits
|
Panel brightness (typical)
450 nits
|
|
|
Contrast ratio (typical)
1200:1
|
Contrast ratio (typical)
1200:1
|
Contrast ratio (typical)
1200:1
|
|
|
Dynamic contrast ratio
30,000:1
|
Dynamic contrast ratio
30,000:1
|
Dynamic contrast ratio
30,000:1
|
|
|
Color gamut
72% NTSC
|
Color gamut
72% NTSC
|
Color gamut
72% NTSC
|
|
|
Backlight life (typical)
50,000 hrs
|
Backlight life (typical)
50,000 hrs
|
Backlight life (typical)
50,000 hrs
|
|
| Glass | |||
|
Germ-resistant technology
Nano-ionic silver
|
Germ-resistant technology
Nano-ionic silver
|
Germ-resistant technology
Nano-ionic silver
|
|
|
Anti-glare
Yes
|
Anti-glare
Yes
|
Anti-glare
Yes
|
|
|
Hardness
9H tempered
|
Hardness
9H tempered
|
Hardness
9H tempered
|
|
| Touch screen | |||
|
Touch technology
Infrared touch
|
Touch technology
Infrared touch
|
Touch technology
Infrared touch
|
|
|
Touch points
up to 40
|
Touch points
up to 40
|
Touch points
up to 40
|
|
|
Touch response time
< 10 ms
|
Touch response time
< 10 ms
|
Touch response time
< 10 ms
|
|
| System | |||
|
Memory | Storage
8GB | 32GB
|
Memory | Storage
8GB | 32GB
|
Memory | Storage
8GB | 32GB
|
|
|
OS
Android 11.0
|
OS
Android 11.0
|
OS
Android 11.0
|
|
|
GPU
G52 MP8
|
GPU
G52 MP8
|
GPU
G52 MP8
|
|
|
CPU
A73 × 4 + A53 × 4
|
CPU
A73 × 4 + A53 × 4
|
CPU
A73 × 4 + A53 × 4
|
|
| Connectivity | |||
|
VGA
1 | 0
|
VGA
1 | 0
|
VGA
1 | 0
|
|
|
HDMI (in | out)
3 × HDMI 2.0 | 1 × HDMI 2.0
|
HDMI (in | out)
3 × HDMI 2.0 | 1 × HDMI 2.0
|
HDMI (in | out)
3 × HDMI 2.0 | 1 × HDMI 2.0
|
|
|
DisplayPort
1 × 1.2 | No
|
DisplayPort
1 × 1.2 | No
|
DisplayPort
1 × 1.2 | No
|
|
|
USB-A
2 × 2.0 + 5 × 3.0
|
USB-A
2 × 2.0 + 5 × 3.0
|
USB-A
2 × 2.0 + 5 × 3.0
|
|
|
USB-C
1 × 3.0 + 1 × 3.0 (PD 65 W)
|
USB-C
1 × 3.0 + 1 × 3.0 (PD 65 W)
|
USB-C
1 × 3.0 + 1 × 3.0 (PD 65 W)
|
|
|
USB-B (for touch)
3 × 3.0
|
USB-B (for touch)
3 × 3.0
|
USB-B (for touch)
3 × 3.0
|
|
|
3.5 mm Line in (1)
PC Audio × 1
|
3.5 mm Line in (1)
PC Audio × 1
|
3.5 mm Line in (1)
PC Audio × 1
|
|
|
3.5 mm Line out
Earphone × 1
|
3.5 mm Line out
Earphone × 1
|
3.5 mm Line out
Earphone × 1
|
|
|
OPS slot (for slot-in PC)
1
|
OPS slot (for slot-in PC)
1
|
OPS slot (for slot-in PC)
1
|
|
|
S/PDIF out
0 | 1 (optical)
|
S/PDIF out
0 | 1 (optical)
|
S/PDIF out
0 | 1 (optical)
|
|
|
Ethernet
10 / 100 / 1000 Mbps (Android), 10 / 100 / 1000 Mbps (OPS) × 2
|
Ethernet
10 / 100 / 1000 Mbps (Android), 10 / 100 / 1000 Mbps (OPS) × 2
|
Ethernet
10 / 100 / 1000 Mbps (Android), 10 / 100 / 1000 Mbps (OPS) × 2
|
|
|
3.5 mm Line in (2)
Mic × 1
|
3.5 mm Line in (2)
Mic × 1
|
3.5 mm Line in (2)
Mic × 1
|
|
|
RS-232
1 | 0
|
RS-232
1 | 0
|
RS-232
1 | 0
|
|
| Built-in peripherals | |||
|
Microphone
8 (Max. pickup range 8m)
|
Microphone
8 (Max. pickup range 8m)
|
Microphone
8 (Max. pickup range 8m)
|
|
|
Speaker
2 × 16 W
|
Speaker
2 × 16 W
|
Speaker
2 × 16 W
|
|
| Power | |||
|
Power
AC 100-240V 50/60Hz
|
Power
AC 100-240V 50/60Hz
|
Power
AC 100-240V 50/60Hz
|
|
|
Standby power consumption
<0.5 W
|
Standby power consumption
<0.5 W
|
Standby power consumption
<0.5 W
|
|
|
Typical power consumption
118.1 W
|
Typical power consumption
125.4 W
|
Typical power consumption
169.4 W
|
|
| Physical | |||
|

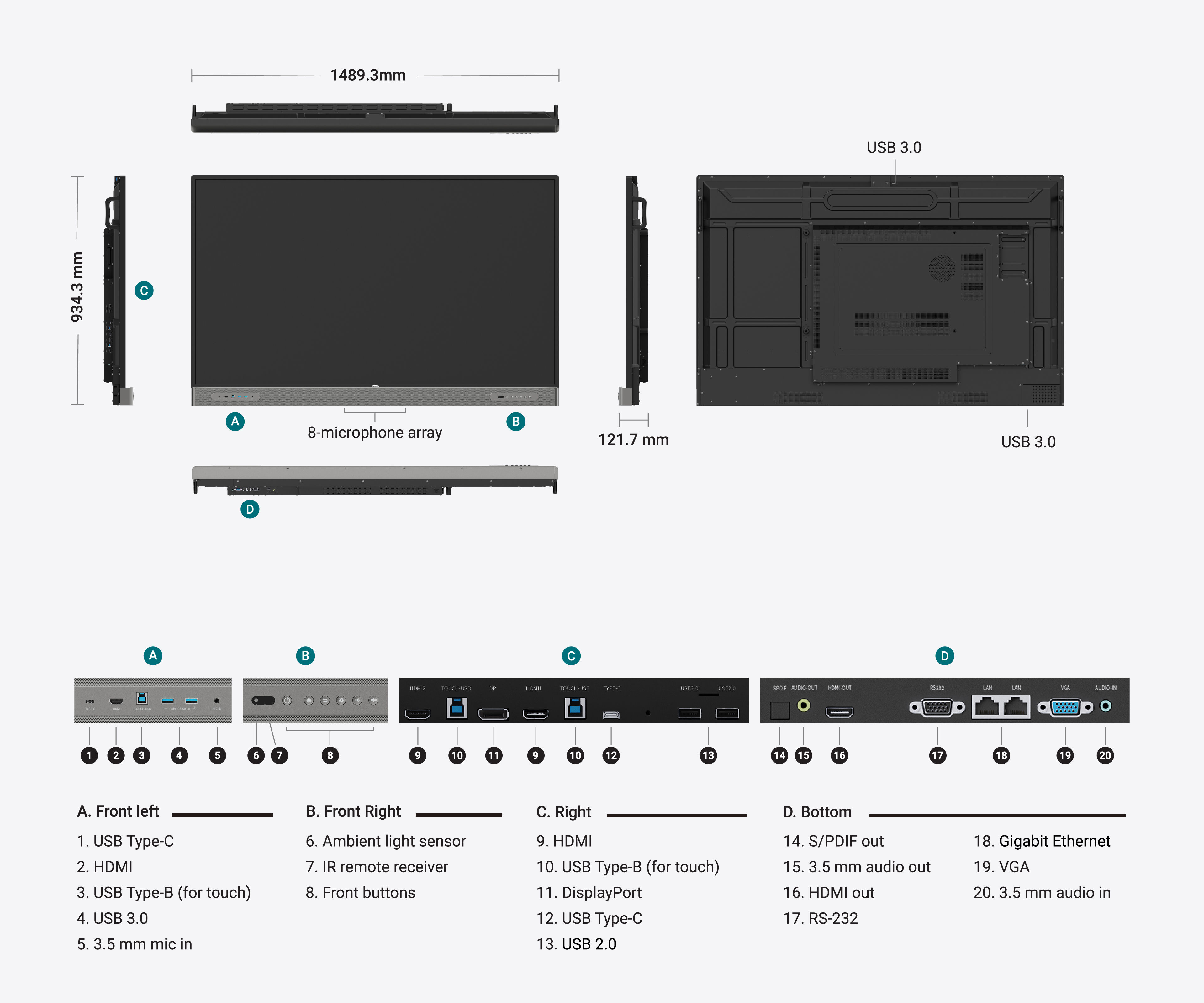

Dimensions (W x H x D)
1489.3 × 934.3 × 121.7 mm (58.6 × 36.7 × 4.8 inch)
|
Dimensions (W x H x D)
1717.1 × 1065.3 × 121.8 mm (67.6 × 41.9 × 4.8 inch)
|

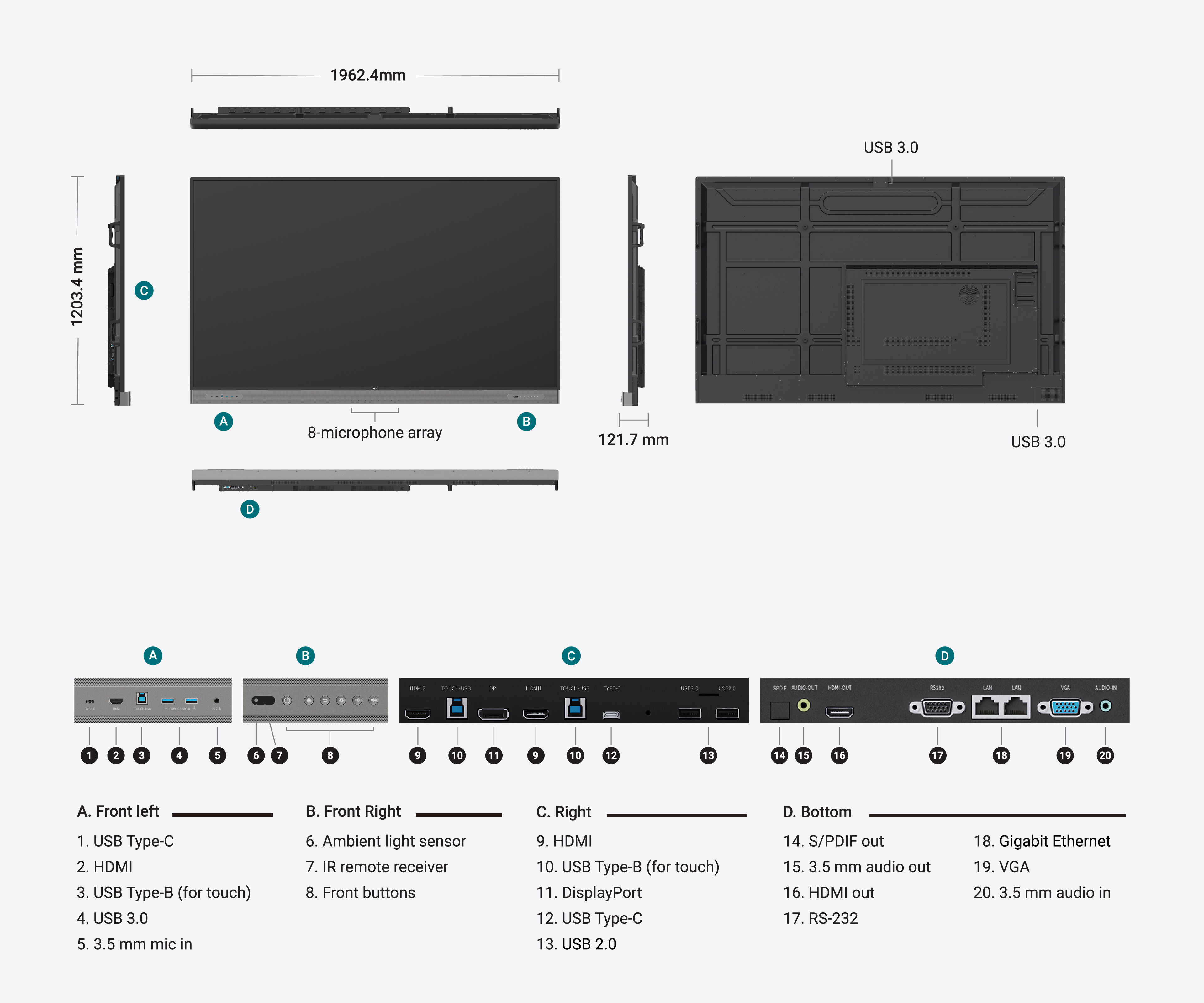

Dimensions (W x H x D)
1962.4 × 1203.4 × 121.7 mm (77.3 × 47.4 × 4.8 inch)
|
|
|
Shipping dimensions (W x H x D)
1660 × 1045 × 220 mm (65.4 × 41.1 × 8.7 inch)
|
Shipping dimensions (W x H x D)
1900 × 1160 × 225 mm (74.8 × 45.7 × 8.9 inch)
|
Shipping dimensions (W x H x D)
2160 × 1340 × 250 mm (85.0 × 52.8 × 9.8 inch)
|
|
|
Weight (product I shipping)
41.0 kg | 54.0 kg (90.3 lbs | 119.0 lbs)
|
Weight (product I shipping)
53.5 kg | 68.0 kg (117.9 lbs | 149.9 lbs)
|
Weight (product I shipping)
68.2 kg | 85.0 kg (150.4 lbs | 187.4 lbs)
|
|
|
Mount (screws)
VESA 600 × 400 mm (4 × M8 × 25L)
|
Mount (screws)
VESA 800 × 400 mm ( 4 × M8 × 25L)
|
Mount (screws)
VESA 800 × 600 mm (4 × M8 × 25L)
|
|
|
Pen Tray
1
|
Pen Tray
1
|
Pen Tray
1
|
|
| Environment | |||
|
Operating temperature
0°C ~ 40°C | 32°F ~ 104°F
|
Operating temperature
0°C ~ 40°C | 32°F ~ 104°F
|
Operating temperature
0°C ~ 40°C | 32°F ~ 104°F
|
|
|
Storage temperature
-10°C ~ 60°C | 14°F ~ 140°F
|
Storage temperature
-10°C ~ 60°C | 14°F ~ 140°F
|
Storage temperature
-10°C ~ 60°C | 14°F ~ 140°F
|
|
|
Storage humidity
20% ~ 80% RH Non-Condensing
|
Storage humidity
10% ~ 60% RH Non-Condensing
|
Storage humidity
10% ~ 60% RH Non-Condensing
|
|
|
Operating humidity
20% ~ 80% RH non-condensing
|
Operating humidity
20% ~ 80% RH non-condensing
|
Operating humidity
20% ~ 80% RH non-condensing
|
|
| Software | |||
|
Whiteboarding
EZWrite 6.0
|
Whiteboarding
EZWrite 6.0
|
Whiteboarding
EZWrite 6.0
|
|
|
Wireless screen sharing
InstaShare 2
|
Wireless screen sharing
InstaShare 2
|
Wireless screen sharing
InstaShare 2
|
|
|
Device management
DMS
|
Device management
DMS
|
Device management
DMS
|
|
|
Account management
AMS
|
Account management
AMS
|
Account management
AMS
|
|
|
Quick access tool
Floating Tool
|
Quick access tool
Floating Tool
|
Quick access tool
Floating Tool
|
|
|
Broadcast system
X-Sign Broadcast
|
Broadcast system
X-Sign Broadcast
|
Broadcast system
X-Sign Broadcast
|
|
|
Flicker Free
Yes
|
Flicker Free
Yes
|
Flicker Free
Yes
|
|
|
Low Blue Light
Yes
|
Low Blue Light
Yes
|
Low Blue Light
Yes
|
|
| Accessories | |||
|
Cables
1 × VGA (3 m | 9.8 ft), 1 × HDMI (3 m | 9.8 ft), 1 × USB-B for touch (3 m | 9.8 ft), 1 × USB-C (1.5 m | 4.9 ft)
|
Cables
1 × VGA (3 m | 9.8 ft), 1 × HDMI (3 m | 9.8 ft), 1 × USB-B for touch (3 m | 9.8 ft), 1 × USB-C (1.5 m | 4.9 ft)
|
Cables
1 × VGA (3 m | 9.8 ft), 1 × HDMI (3 m | 9.8 ft), 1 × USB-B for touch (3 m | 9.8 ft), 1 × USB-C (1.5 m | 4.9 ft)
|
|
|
Wall mount
1
|
Wall mount
1
|
Wall mount
1
|
|
|
Pen
2
|
Pen
2
|
Pen
2
|
|
|
Remote control
1
|
Remote control
1
|
Remote control
1
|
